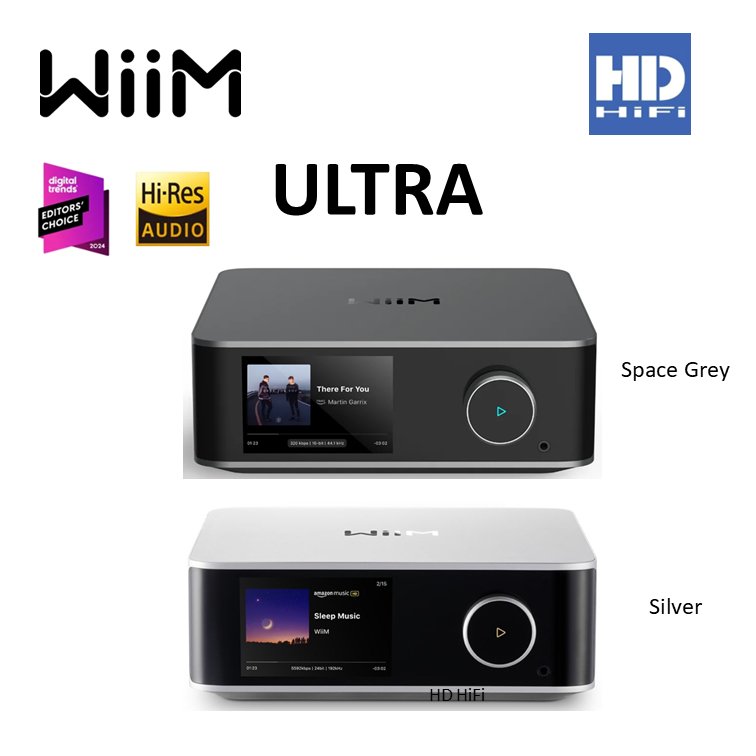

WiiM ULTRA
The WiiM Ultra sets a new standard for audio streamers. Designed to provide users with an unparalleled audio experience through versatile functions, rich connections, and high performance, it offers exceptional value for music lovers who are looking to improve their streaming experience
EXPERIENCE HIGH-END SOUND
WiiM Ultra makes use of a premium ESS Sabre ES9038Q2M DAC chip for expert conversion of your digital audio. For superior integration into your home, it also benefits from the latest Wi-Fi 6E and BT 5.3 wireless technologies via its two antennae.
Featuring a vibrant 3.5” full-colour touchscreen, aluminium chassis, a physical volume knob, and a rich selection of audio inputs and outputs for even more vibrant and hi-res sound, it truly is a central hub for your listening space.
EASY TO SET-UP
The WiiM Ultra will automatically pop up in your WiiM Home app. The in-app guide will thereafter aid you in the rest of the set up, and you will be able to start streaming music in less than 2 minutes. The Ultra is designed to be connected straight to the analogue inputs of your amplifier or active speaker, but for other applications, there are still optical or coaxial outputs available.
PART OF YOUR ECOSYSTEM
WiiM Ultra supports Spotify Connect, Chromecast Audio, Works with Alexa, Tidal Connect, DLNA playback and Roon Ready - so you can cast to it using your existing services, as well as using the WiiM Home app to open up a wider world of music.
AUTO CALIBRATION
The device you connect your WiiM Ultra to may add latency to the audio path due to its own internal design or technologies. WiiM Ultra comes with a built-in microphone so after first set-up you can measure the sound in the room and make sure your device is synchronised perfectly for optimal playback on its own or as part of a multi-room system.
PLAY MUSIC EVERYWHERE
Building a wireless multiroom system has never been easier. Group WiiM Ultra with other Alexa-enabled devices, Google Home devices or any other WiiM streamers to have a multi-room/synchronised audio experience.
WiiM Ultra also supports multi-room playback from various source inputs, including Wi-Fi, BT, Aux and SPDIF. For the highest performance, the Ultra also boasts a high-quality analogue to digital converter chip, capable of achieving up to a 24-bit, 192kHz digital output. The result is a clearer, more detailed sound when you cast your traditional sources across the network.
WIIM HOME
All features of the WiiM Pro Plus are controllable through the WiiM Home app. So whether you want to tweak the EQ, set up a new preset or find your favourite radio station anywhere in the world - everything is made effortlessly simple with WiiM.
Spefications
INTERNET RADIO SUPPORT TuneIn, iHeartRadio, vTuner and Radio Paradise
MQA COMPATIBILITY MQA Renderer
ROON SUPPORT Roon Ready (Coming Soon)
AUDIO CODECS SUPPORTED MP3, AAC, ALAC, APE, FLAC, WAV, WMA, AIFF, OGG Supported
TONE CONTROL Adaptive EQ and Graphic Equaliser built-in
HDMI INPUT(S) ARC Input
FIXED ANALOGUE OUTPUT(S) 1 x RCA Pair
BLUETOOTH VERSION 5.3
RCA LINE INPUT(S) 1
VARIABLE ANALOGUE OUTPUT(S) 1 x RCA Pair
SIGNAL TO NOISE RATIO 121 dB
SUPPORTED STREAMING SERVICES Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer and SoundCloud Supported
APP CONTROL WiiM Home
DAC CHIP ES9038Q2M
NETWORK CONNECTIVITY Wi-Fi & Ethernet
DIGITAL OUTPUT(S) Coaxial, Optical, USB
CPU SPECIFICATIONS Quadcore A53
MEMORY 512MB Flash + DRAM
MULTI-ROOM STREAMING Multiple
OUTPUT OPTIONS Switch variable output to fixed level
SMART HOME TECHNOLOGIES Works with Chromecast Audio, Google, Siri and Alexa
ANALOGUE INPUT (ADC) Up to 192k, 24bit
THD+N (ANALOGUE OUT) - 113dB (0.00023%)
