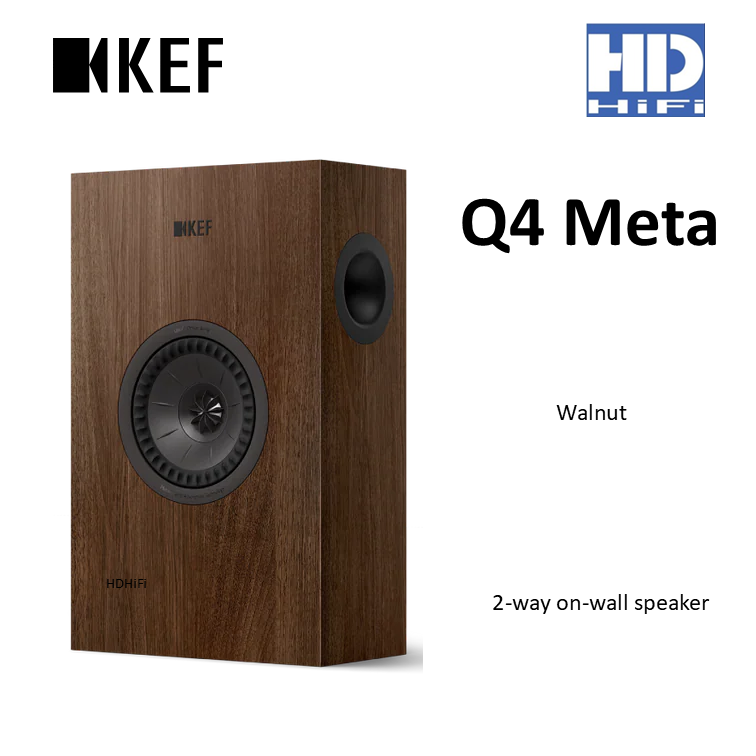

The slender and sleek Q4 Meta is a highly versatile on-wall speaker that
can be used as left, centre, and right (LCR) speaker, or as a surround
speaker. Featuring a 5.25" 12th generation Uni-Q driver array
with MAT™, the HiFi speaker delivers an expansive, immersive soundscape
without taking up valuable floor space.
Design
Two-way bass reflex
Drive units
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone
Frequency range (-6dB)
52 Hz - 20kHz
Typical in-room bass response (-6dB)
44 Hz
Frequency response (±3dB)
65 Hz - 20 kHz
Crossover frequency
1.8 kHz
Amplifier requirements
10 - 150 W
Sensitivity (2.83V/1m)
86 dB
Harmonic distortion (90dB, 1m)
<2% 145 Hz and above
<1% 170 Hz - 20 kHz
Maximum output
108 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
5.7 kg (12.6 lbs.)
Dimension (H x W x D) with terminal *
400 x 250 x 142 mm (15.7 x 9.8 x 5.6 in.)
Finishes
Satin Black / Satin White / Walnut
