World’s most versatile high fidelity home theater speaker. Convincing, immersive sound for Dolby Atmos and other surround channels. Easily mounts to a wall or ceiling.
Frequency Response / Acoustic Data:
Frequency Response: 48Hz to 40kHz (+/-3 dB)
Nominal impedance: 6 ohms.
Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
Recommended amplifier power: 20-150 watts.
Speaker Specs:
Elevation Loudspeaker

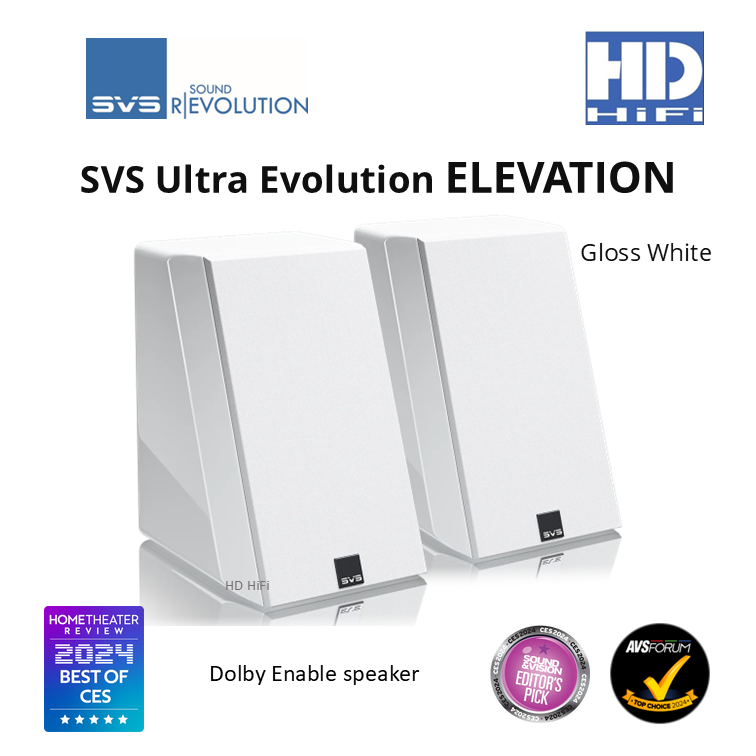

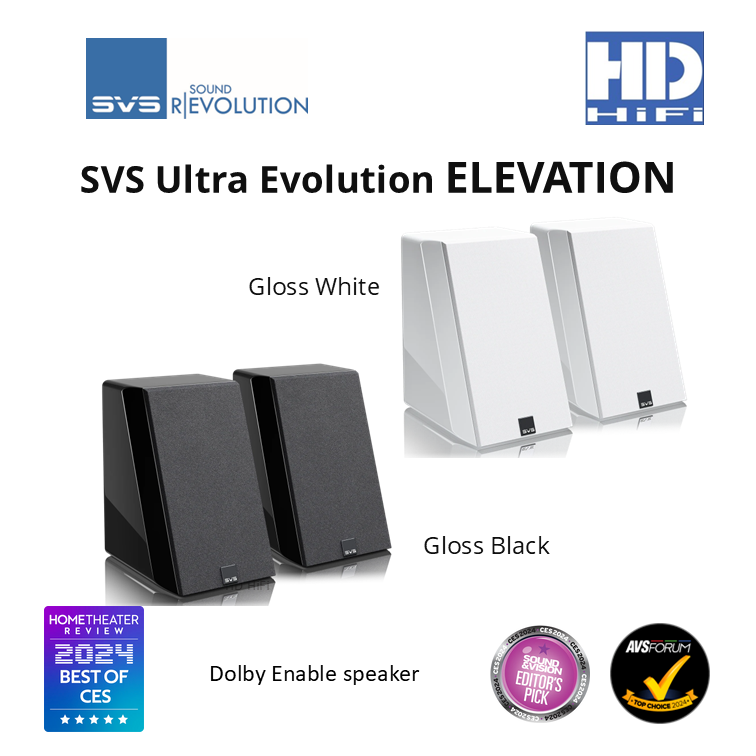

Piano gloss black, piano gloss white, real black oak veneer finish options
Gold-plated 5-way binding posts
1.4” wide-flared rear-firing port
Cloth grille with magnetic retention system
Magnetic SVS Logo which can be removed and oriented according to speaker application
Elastomer stick-on bumper feet
Unique SVS Multi-Angle Wall Bracket system the allows speaker to be wall or ceiling mounted in. Magnetic ceiling lock included.
1/4-20" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
Cabinet Dimensions: 11.14” (H) x 7.28” (W) x 8.79” (D) / 283mm (H) x 185mm (W) x 223.2mm (D)
Overall Dimensions: 11.14” (H) x 7.28” (W) x 9.82” (D) / 283mm (H) x
185mm (W) x 249.4mm (D) (includes grille and SVS Multi-Angle Wall
Bracket)
Shipped Dimensions: 11.6” (H) x 20.9” (W) x 15” (D) / 295mm (H) x 532mm (W) x 381mm (D)
Weight Packaged: 27.8 pounds / 12.6 kgs
Weight Unboxed: 12.3 pounds / 5.6 kgs
Driver Specs:1” Diamond Coated Tweeter
FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
Cutting-edge vapor-deposition grows a hyper-rigid diamond-like
coating on an aircraft-grade aluminum dome, pushing high-frequency
extension further beyond human hearing, and delivering best-in-class
fidelity, linearity, and transient response.
Silver tinsel leads for optimal signal transfer and power handling.
5.25” Woofer
Long stroke motor and suspension for high output.
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
Tweeter-to-woofer crossover: 1.9 kHz
Cabinet:
Chamfered front baffle and flush-mounted drivers reduce edge
diffraction and improve on-axis and off-axis high-frequency response.
Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic
insulation eliminate acoustic and structural resonances, ensuring an
inert enclosure and an uncolored response, even at the highest drive
levels.
Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
